Description
- A versatile mounting option to attach a CB antenna to any vertical surface, horizontal or vertical bar.
- Recommended for antennas up to 5' tall
Description

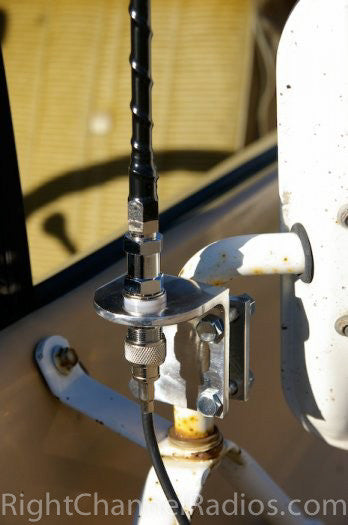

The three-way CB mount is one of the most popular mounting options because it's so versatile. It is designed to attach to horizontal mirror arms or bars measuring .25" - 1" in diameter. You can use it to easily mount a CB antenna to a vertical or horizontal bar, or to any vertical surface. Recommended for antennas up to 5' tall.
Specs
| Model / SKU: | PTRV1X OR CB3 |
| Recommended for: | This is perfect for CB users who haven't yet decided where to mount their CB antennas. The three-way mount offers versatility, as you can mount it to vertical and horizontal bars, or to any flat surface. It's frequently attached to mirror arms, bumpers, roof racks or the sides of vehicles. For horizontal mirror arms or bars measuring .25" - 1" in diameter. |
| Compatible with: | All CB antennas that use a standard 3/8" x 24 threaded base. PL-259 stud requires CB coax with PL-259 ends. |
| Installation Notes: | The mounting clamp can be positioned horizontally or vertically for various mirror arms and rails. It can also be removed, allowing you to use the angle bracket as a side "L" bracket on any flat vertical surface, such as the side of a motorhome or the back of a Jeep. The mount has a four-bolt pattern, and comes with mounting hardware and a PL-259 antenna stud. |
| Mount Location: | Mirror / Bar, Vertical Surface / Side Mount, Other |
| Stud Type: | PL-259 (Barrel) |
| Material: | Aluminum mount and chrome plated brass stud |
| Product Includes: | Mount and PL-259 stud Antenna and coax sold separately |
Details
This will fit from ¼” bar to a 1” bar mount. It is 2” wide, and it can be mounted to vertical or horizontal bars.
Mount includes a single mirror groove, four-bolt assembly and a PL-259 compatible antenna stud. If you remove the four-bolt assembly, you can rotate the grooved side of the mount to fit the direction of the bar. To mount on a flat surface, simply remove the grooved side of the mount and bolt the flat side to the surface. The mount is compatible with all standard 3/8" antennas.
