Description
- Versatile enough to mount on any vehicle door or to a tailgate hatch
- 180-degree swivel allows you to adjust your antenna
- Recommended for antennas up to 4' tall
Description
This unique CB mount can be installed in a vehicle's door jamb or tailgate hatch. Once the mount is installed, the 180-degree swivel allows you to adjust the stud to ensure a straight, vertical antenna regardless of the mounting angle! This Firestik mount was designed for vans, pickup trucks and SUVs, but is versatile enough to mount on any vehicle with a door. Made from rust-resistant stainless steel and recommended for antennas up to 4' tall. The lug stud requires a terminal or ring-style CB coax.
Specs
| Model / SKU: | Firestik SS204 |
| Recommended for: | Mounting to inner door jambs, like those on the rear or side door of a cargo van or truck. The vertical adjustment feature lets you mount the jamb on either side of the vehicle, or on vehicles with non-vertical door jambs. Recommended for antennas up to 4' tall. |
| Compatible with: | All fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base. |
| Installation Notes: | This mount attaches to the inner edge of the door jamb and contains four holes to secure it to the vehicle using screws or bolts. We recommend first marking where the holes will be drilled using the mount as a template. You can then drill the holes and attach the mount. |
| Mount Location: | Vertical Surface / Side Mount, Other |
| Stud Type: | Lug (Ring and Terminal) |
| Material: | Stainless Steel |
| Product Includes: | Door jamb mount Lug-style antenna stud Antenna and coax sold separately |
Details
These Firestik mounts were specifically designed to enable antenna installation on vehicles where other mounts might not work. The primary goal was to offer a mount that could attach to the inner door jamb, such as the jamb found on the rear or side door of a cargo van. The mounting screws are on the inner edge of the jamb, eliminating visible holes in the vehicle. Like many other Firestik mounts, the versatility of these mounts go well beyond their targeted use. For antennas up to 4' tall.

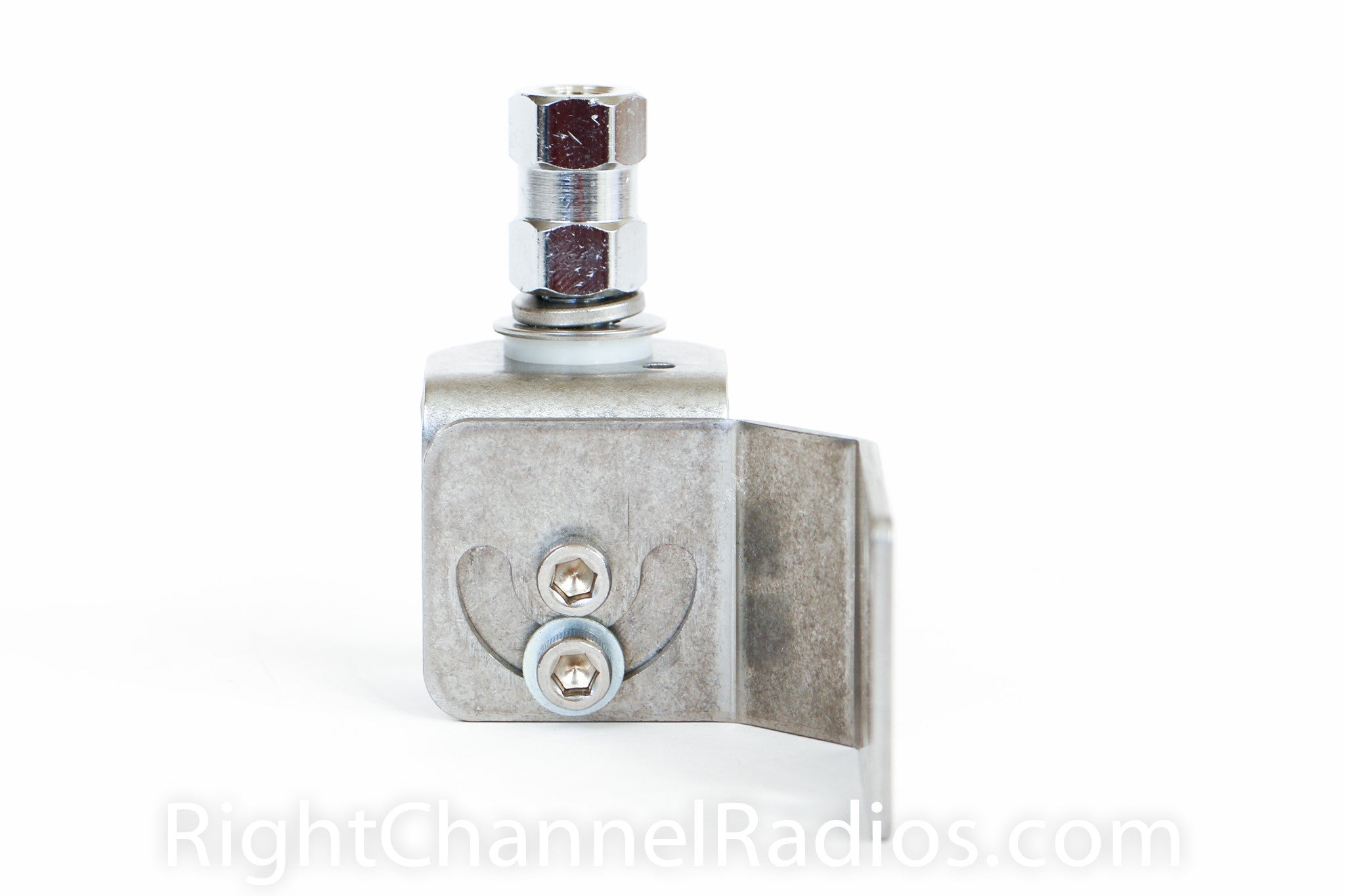

Bracket parts and mounting hardware are made of stainless steel for years of trouble-free use. The bracket is 1.5" (38mm) wide and has a 2" (50mm) reach for mounting inside the door jamb. Overall, the mount is 4.2" (105mm) long. In order to compensate for the door jamb angles, the stud bracket will swivel a full 180 degrees, 90 in each direction. This feature lets you mount the antenna on the left or right side of the vehicle.
- Ring or terminal coax attachment
- Two-year warranty
